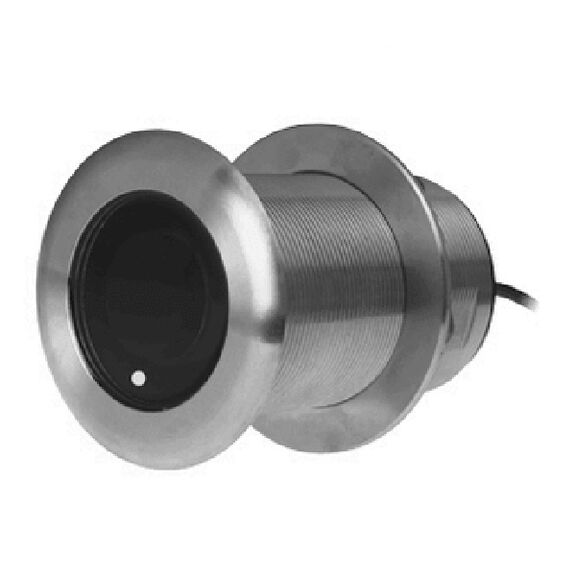

xSonic SS75H 12° Tilt Thru-Hull High CHIRP Transducer

xSonic SS75H 12° Tilt Thru-Hull High CHIRP Transducer
Model #
18259291
Mfg #
000-13912-001
$769.99
Model #
18259291
Mfg #
000-13912-001
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Quantity not available. Please adjust.
Temporarily Out of Stock
Thank you!
We'll let you know when it's back in stock.
-
+
The xSonic SS75H is a Stainless Steel, thru-hull, tilted, high-frequency (130-210 kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings. The 12° tilt is ideal for boats with a 12° to 19° hull deadrise.
Beam
15 to 9 Degrees High CHIRP
Deadrise Angle
12 to 19 Degree
Frequency
130kHz-210kHz High CHIRP
Material
Stainless Steel
Maximum Depth
1000 Feet High CHIRP
Mount Type
Thru-Hull Flush
Sonar
Single Channel CHIRP
Transmit Power
600 Watts
Type
Thru-Hull
Beam
15 to 9 Degrees High CHIRP
Deadrise Angle
12 to 19 Degree
Frequency
130kHz-210kHz High CHIRP
Material
Stainless Steel
Maximum Depth
1000 Feet High CHIRP
Mount Type
Thru-Hull Flush
Sonar
Single Channel CHIRP
Transmit Power
600 Watts
Type
Thru-Hull
