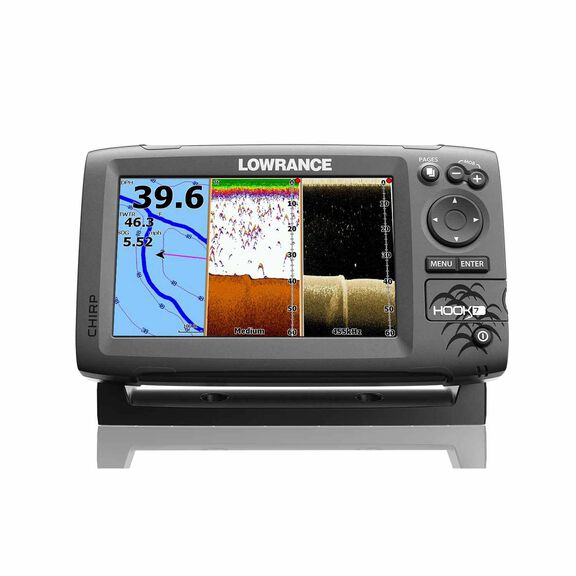

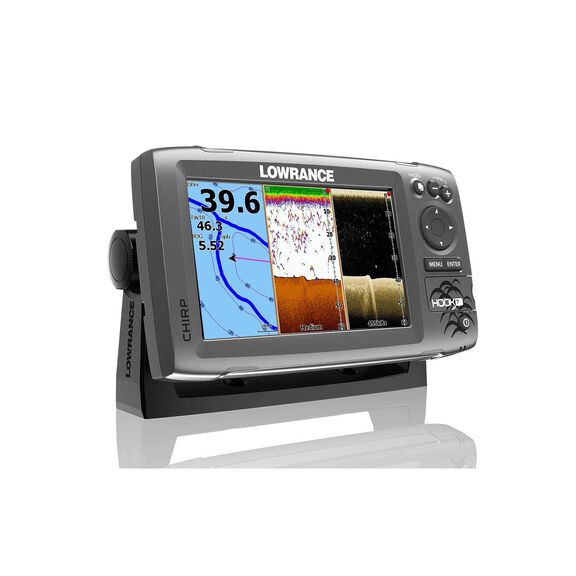

Hook-7 Fishfinder/Chartplotter Combo with U.S. Charts
PLUS Plan includes:
- Wear and Tear Coverage
- Power Surge Protection
- Exchange for products under $400
- Onboard service on products over $750
- Up to 5 years of total coverage
PLUS plan goes into effect with purchase; no registration required. Purchase online, in stores or
Complete Your Purchase
The Hook-7 makes the latest CHIRP sonar and DownScan Imaging™ technologies more affordable than ever.
Both CHIRP and Scanning Sonar: It’s compatible with both CHIRP and DownScan Imaging™, so you get the clearest view of fish, structure and the bottom. CHIRP provides more definition and better target separation than traditional sonar, and DownScan Imaging™ provides a nearly photographic image of what’s down below. Enhanced sonar sensitivity, excellent target separation and superior noise rejection make seeing baitfish and gamefish targets easier. Full color LED-backlit displays are bright and clear in all lighting conditions, and all functions are controlled and accessed via a simple keypad.
Basemap with detailed lakes and rivers: A detailed World Reference basemap featuring more than 3,000 US lakes and rivers and coastal contours to 1,000'. You can also add a wide variety of detailed charts with the microSD card slot. If you've been waiting for lower prices on top-of-the-line technology, your wait is over.
Purchase Your Transducer Below: This Hook-7 is sold without a transducer. Please choose one of the transducers from the table below to complete your system. If you’ve selected an in-hull option, add the ST-TBL Speed Temp Sensor.
Key Features
- CHIRP Sonar plus DownScan Imaging™—the power of today's leading fishfinder technologies combined to provide the best possible view beneath your boat
- Use your Insight Genesis™ custom maps created from your own sonar logs
- DownScan Overlay™ technology overlays DownScan Imaging onto CHIRP Sonar
- Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly
- TrackBack™ to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint
- Convenient Page selector menu with quick access to all features using one-thumb operation
- Multi-Window Display lets you quickl
- y choose from pre-set page layouts - including a three-panel view
- CHIRP Sonar plus DownScan Imaging™: the power of today's leading fishfinder technologies combined to provide the best possible view beneath your boat
- DownScan Overlay™ technology overlays DownScan Imaging onto CHIRP Sonar
- Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly
- Internal GPS antenna: Highly accurate, built-in 10Hz GPS antenna
- microSD card slot for adding maps. Use your Insight Genesis™ custom maps created from your own sonar logs or compatible maps. Lake Insight® and Nautic Insight® PRO, Navionics® +, C-MAP MAX-N, Fishing Hot Spots® PRO, & Insight Genesis are all compatible with this technology.
What’s in the Box
- Hook-7 Fishfinder/Chartplotter
- Power cable
- Documentation pack
- Fuse holder (ATC blade)
- Fuse
Specifications
- Display Type: 16-bit color full VGA Solar MAX™ TFT LCD
- Backlight: LED (11 levels)
- Screen Size: 7.0" diagonal
- Screen Resolution: 800 x 480
- GPS Antenna: 16 parallel channel internal high-sensitivity WAAS + EGNOS + MSAS
- Routes and Trails: Up to 3000 waypoints, 100 routes/100 waypoints per route, 100 retraceable plot trails/up to 10,000 points per trail
- NMEA Interface: Requires optional Power/NMEA cable (000-0127-49, Model 14077762)
- Max Depth: 300' 455/800kHz; 1000' 83/200kHz; 2500' 50/200kHz
- Max Speed: 70mph
- Available Transducer Frequencies: HDI 50/200kHz (Low/High CHIRP); HDI 83/200kHz (Medium/High CHIRP); 83/200kHz (Medium/High CHIRP)
- Transmit Power: 500W (RMS)
- Dimensions: 9 1/4"W x 5 15/16"H x 3"D with bracket
- Power Requirement: 12V DC
- Voltage Input: 10 to 17V
- Amperage: Typical: 1.1A
- Fuse Type: 3-amp Automotive
- Waterproof Rating: IPX7
- Warranty: One year
What You'll Need
Transducer Options
This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you'll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:
| Transducer Type: Broadband/CHIRP with Blue Connnector | Reading(s) | Transmit Power | Max. Depth | Material | Model |
|---|---|---|---|---|---|
| HST-WSBL Transom-Mount Skimmer™ Transducer | Depth/Temp | 300W | 1,000' | Plastic | 8803595 |
| HST-DFSBL Skimmer™ Transducer with Temperature | Depth/Temp | 600W | 3,000' | Plastic | 8803603 |
| PDT-WBL Trolling Motor or In-Hull Mount Shallow Water | Depth/Temp | 300W | 1,000' | Plastic | 10856003 |
| Transducer Type: Broadband Traditional and HDI with Blue Connector | Reading(s) | Transmit Power | Max. Depth | Material | Model |
|---|---|---|---|---|---|
| 455/800 kHz HDI Skimmer XDCR Transom (Primary) | Depth/Temp | N/A | 1,000'/300' (DI) | Plastic | 14273965 |
| 50/200 455/800 kHz HDI Skimmer XDCR Transom 0 Degree (Primary) | Depth/Temp | N/A | 3,000'/300' (DI) | Plastic | 14273957 |
| HDI TH 50/200 455/800 khz 0 degree Thru-Hull | Depth/Temp | 600W | 3,000'/300' (DI) | Bronze | 14706600 |
| HDI TH 50/200 455/800 kHz 12 degree Thru-Hull | Depth/Temp | 600W | 3,000'/300' (DI) | Bronze | 14706618 |
| HDI TH 50/200 455/800 kHz 20 degree Thru-Hull | Temp | 600W | 3,000'/300' (DI) | Bronze | 14706626 |
What You May Want to Add:
| Accessories | Model |
|---|---|
| XT-20BL-20 foot extension cable | 11259322 |
| 7 pin Blue Connector to Bare Wires | 14706568 |
| ST-TBL Speed Temp Sensor | 14272777 |
