AGC Fuse Block Systems
A traditional glass fuse (AGC) panel with some modern features
Blue Sea Systems has added some helpful features to ST glass fuse blocks. The insulating cover adds space to accept easy to read labels and satisfies ABYC and USCG requirements for insulation. Spare fuses store neatly in the cover. Fuses are spaced in a manner to make them easier to remove and install. Available with or without a ground bus to match the application. Corrosion resistant tin-plated copper buses and phosphor bronze fuse clips are made for marine applications will provide years of service.
Key Features
- Improved cover accepts larger easy to read labels (sold separately)
- Spare fuses store in cover
- Cover satisfies USCG and ABYC requirements for insulation of conductive components
- Will accept Fast-acting (AGC), Time-delay (MDL) and 3AG Glass fuses
- Available with or without ground bus bar to meet application requirements
- Lifetime warranty
Specifications
- Maximum Amperage: 30A per circuit
- Voltage: 32V
- Panel Cumulative Rating: 100A
- Terminal screws: #8-32 with captive star washer
- Materials: reinforced polycarbonate base with clear polycarbonate cover, tin-plated copper buses and phosphor bronze clips
- Approvals: ABYC, USCG

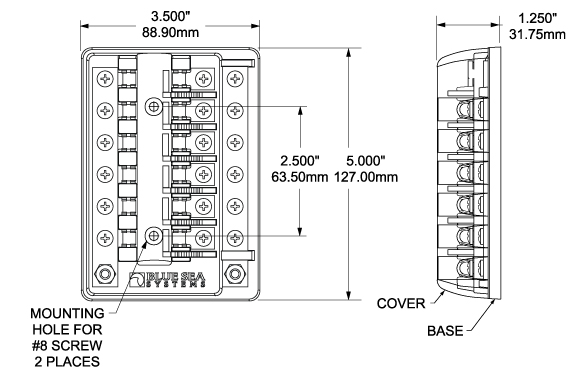

- Dimensions: 5 "H x 3 1/2"W x 1 1/4"D
Review Snapshot
by PowerReviews
Ratings Distribution
Best Uses
Describe Yourself
Primary use
Reviewed by 5 customers
I would buy again
Good quality, well made.
An excellent addition to adhesive problems.
Verified Buyer
Comments about 6-Position Fuse Block with Ground by Blue Sea Systems | Marine Electrical at West Marine
Very easy to apply, stress free that knowing that at anytime you can seal up this product & store in your refrigerator.
great service, quick shipping, will deal with in future
Verified Buyer
Comments about 6-Position Fuse Block with Ground by Blue Sea Systems | Marine Electrical at West Marine
wiring boat
Use the ATO/ATC fuse blocks instead
Verified Reviewer
Comments about 6-Position Fuse Block with Ground by Blue Sea Systems | Marine Electrical at West Marine
I am an ABYC certified marine electrician. Blue Sea is a fine company with a line of products I use often. This fuse block is one that should be avoided. The old AGC glass vial fuses belong to the era of 1960s. They have little practical use in modern electronics and electricity. I make it a practice to eliminate them insofar as practical in every boat I work on. They are difficult to read, contacts are exposed, and they shatter. Use the Blue Sea ST blade fuse block instead.
Typical Blue Sea's high quality product.
Verified Buyer
Comments about 6-Position Fuse Block with Ground by Blue Sea Systems | Marine Electrical at West Marine
Excellent product. Excellent choice for multiple circuit applications
